Roof Pitch Calculator
Calculate roof pitch, roof angle, and slope percentage using the roof rise and run. Enter your measurements below to get an instant result.
Your Roof Pitch Result
Roof Angle = tan⁻¹(Rise ÷ Run)
Slope (%) = (Rise ÷ Run) × 100
Common Roof Pitch Chart
| Roof Pitch | Approx. Angle | Slope |
|---|---|---|
| 2:12 | 9.46° | 16.67% |
| 3:12 | 14.04° | 25.00% |
| 4:12 | 18.43° | 33.33% |
| 5:12 | 22.62° | 41.67% |
| 6:12 | 26.57° | 50.00% |
| 8:12 | 33.69° | 66.67% |
| 10:12 | 39.81° | 83.33% |
| 12:12 | 45.00° | 100.00% |

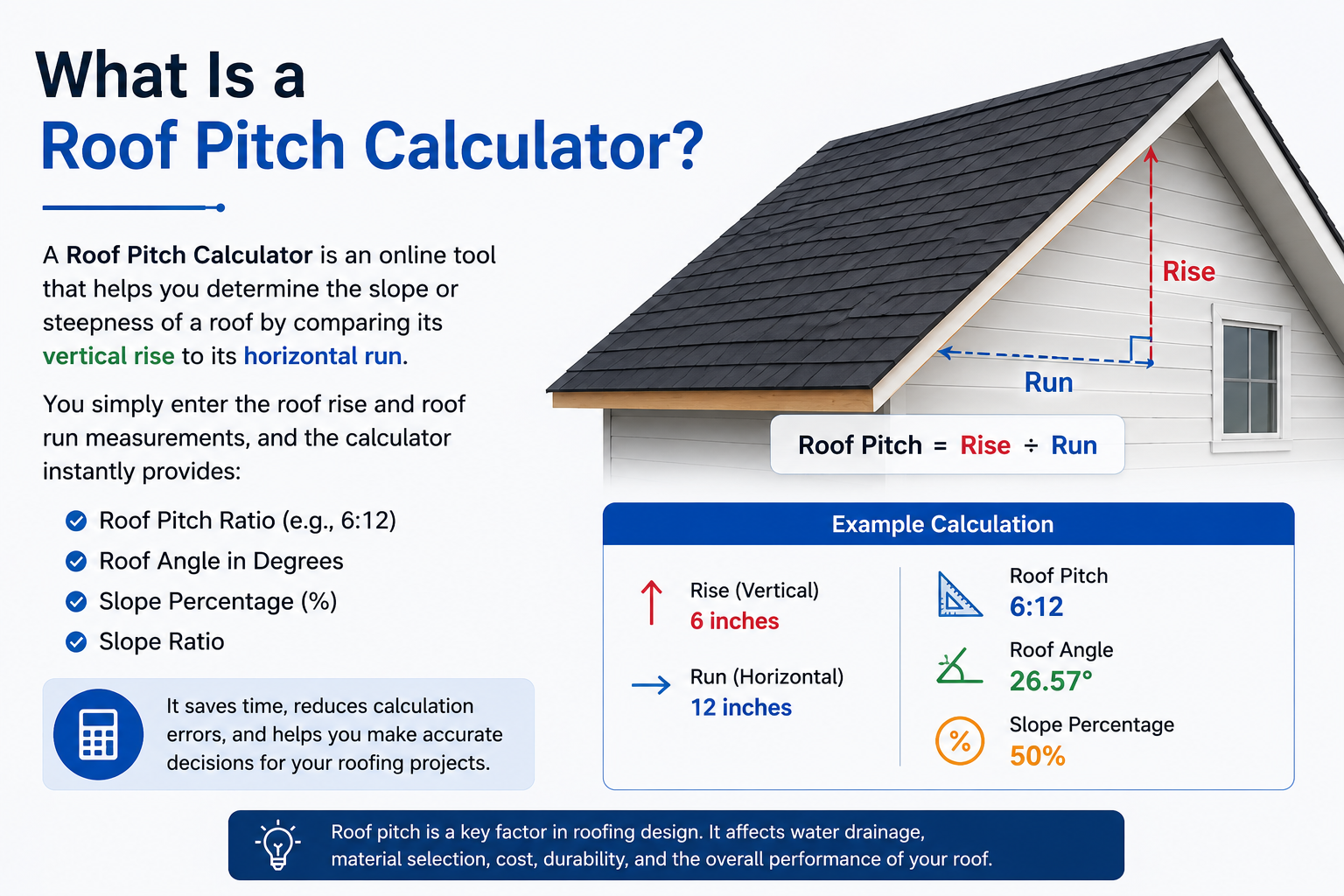

What Is a Roof Pitch Calculator?
A Roof Pitch Calculator is a simple online tool used to determine the steepness of a roof from its vertical rise and horizontal run. Instead of working through the calculation manually, you can enter the two measurements and instantly see the roof pitch ratio, roof angle, and slope percentage.
Roof pitch is an important measurement in residential construction, commercial buildings, roof replacement, renovation work, shed construction, garage projects, and other building applications. The pitch can influence water drainage, snow shedding, roofing material selection, roof design, attic space, and installation requirements.
This calculator is designed to make the calculation straightforward. If you know the rise and run, you can quickly convert those measurements into the familiar roofing format such as 4:12, 6:12, or 8:12.
What Is Roof Pitch?
Roof pitch describes how much a roof rises vertically compared with its horizontal run. In North American roofing, pitch is commonly expressed as a ratio based on a 12-unit horizontal run.
For example, a 6:12 roof pitch means that the roof rises 6 inches for every 12 inches of horizontal run. An 8:12 roof rises 8 inches for every 12 inches of horizontal run.
The first number represents the rise and the second number represents the standardized run. A larger first number generally means a steeper roof.
Roof Pitch Formula
The basic relationship between roof rise and run is:
Roof Pitch = Rise ÷ Run
To express the result using the standard 12-unit run:
Pitch Ratio = (Rise ÷ Run) × 12
The roof angle can be found using the inverse tangent function:
Roof Angle = tan⁻¹(Rise ÷ Run)
The slope percentage is calculated as:
Slope (%) = (Rise ÷ Run) × 100
How to Use the Roof Pitch Calculator
Using the calculator is straightforward. You only need the vertical rise and horizontal run measurements.
- Enter the measured roof rise.
- Enter the corresponding roof run.
- Select the measurement unit you are using.
- Click Calculate Roof Pitch.
- Review the pitch ratio, roof angle, and slope percentage.
The calculator converts the entered rise and run into a standardized pitch based on a 12-unit run. The rise and run must use the same unit for the calculation to be meaningful.
Roof Pitch Example
Suppose you measure a roof and find that it rises 6 inches over a horizontal run of 12 inches.
- Rise = 6 inches
- Run = 12 inches
- Roof pitch = 6:12
- Roof angle ≈ 26.57°
- Slope = 50%
Therefore, the roof has a 6:12 pitch, which corresponds to an angle of approximately 26.57 degrees.
How to Calculate Roof Pitch Manually
You can calculate roof pitch without an online calculator if you have accurate rise and run measurements.
Step 1: Measure the Rise
The rise is the vertical distance. A level and measuring tape can be used to determine the vertical rise accurately.
Step 2: Measure the Run
The run is the horizontal distance associated with the rise measurement. Roofing calculations often use a 12-inch horizontal run as the standard reference.
Step 3: Divide Rise by Run
Divide the rise by the run. If the rise is 6 and the run is 12:
6 ÷ 12 = 0.50
Multiplying this value by 12 gives a standard roof pitch of 6:12.
Roof Pitch and Roof Angle
Roof pitch and roof angle describe the same general characteristic—the steepness of a roof—but they are expressed differently.
| Measurement | How It Is Expressed | Example |
|---|---|---|
| Roof Pitch | Rise : 12-unit run | 6:12 |
| Roof Angle | Degrees | 26.57° |
| Slope | Percentage | 50% |
Common Roof Pitch Chart
The following chart shows several common roof pitches and their approximate angles and slope percentages.
| Pitch | Approx. Angle | Slope Percentage |
|---|---|---|
| 2:12 | 9.46° | 16.67% |
| 3:12 | 14.04° | 25% |
| 4:12 | 18.43° | 33.33% |
| 5:12 | 22.62° | 41.67% |
| 6:12 | 26.57° | 50% |
| 8:12 | 33.69° | 66.67% |
| 10:12 | 39.81° | 83.33% |
| 12:12 | 45° | 100% |
Why Is Roof Pitch Important?
Roof pitch is not only an architectural measurement. It can affect how a roof performs over time. The slope influences how quickly rainwater moves away from the roof surface and how easily snow can accumulate or slide away.
Roof pitch can also influence the type of roofing system that can be installed. Some roofing products have minimum slope requirements, so the actual roof design should always be checked against the manufacturer's installation instructions and applicable building requirements.
A steeper roof may also provide additional attic or loft space, while a lower pitch can have different drainage and waterproofing considerations.
Low-Slope Roofs
Low-slope roofs have relatively little vertical rise compared with their horizontal run. Examples include pitches around 2:12 or 3:12.
Because water moves more slowly on a low-slope roof, drainage and waterproofing are particularly important. Roofing systems should be selected according to their approved slope range and installation requirements.
Medium Roof Pitches
Pitches such as 4:12, 5:12, and 6:12 are commonly encountered in residential roof designs. They provide a balance between drainage, appearance, roof accessibility, and construction requirements.
The suitability of a particular pitch depends on the building design, local climate, roofing material, structural requirements, and applicable building standards.
Steep Roof Pitches
Steep roofs have a greater vertical rise relative to their horizontal run. Examples include 8:12, 10:12, and 12:12.
Steeper roofs can move rainwater and snow away more quickly, but they can also be more difficult and hazardous to access during construction and maintenance. Professional safety equipment and appropriate procedures may be required.
Roof Pitch vs Roof Slope
The words pitch and slope are sometimes used interchangeably, but roofing professionals may use them in different ways.
| Roof Pitch | Roof Slope |
|---|---|
| Usually expressed as a ratio. | Often expressed as a percentage or angle. |
| Example: 6:12. | Example: 50% or 26.57°. |
| Common in roofing measurements. | Useful for mathematical and engineering calculations. |
Common Uses of a Roof Pitch Calculator
A Roof Pitch Calculator can be useful in a variety of residential and construction-related situations.
- Planning a new roof.
- Checking an existing roof pitch.
- Planning roof replacement projects.
- Designing garages and sheds.
- Planning home renovations.
- Estimating roof geometry.
- Planning solar panel installations.
- Checking measurements for architectural drawings.
- Comparing different roof designs.
- Understanding roof angle and slope.
Roof Pitch for Roofing Materials
Roof pitch can affect the selection and installation of roofing materials. Different roofing systems can have different minimum slope requirements. Asphalt shingles, metal roofing, tile, membrane systems, and other roofing products should be installed according to their manufacturer's specifications.
For this reason, a calculated pitch should be treated as one part of the planning process rather than the only factor used to select a roofing system.
Roof Pitch and Snow
In areas that receive significant snowfall, roof geometry can be an important part of building design. A steeper roof can encourage snow to slide off more readily, while a lower-pitched roof may retain snow for longer periods.
However, snow load depends on much more than pitch. Structural design, local climate conditions, snow characteristics, building codes, roof geometry, and other factors all need to be considered.
Roof Pitch and Rainwater Drainage
Roof slope affects how quickly water travels toward gutters, drainage systems, and roof edges. A properly designed roof needs sufficient drainage for the expected environmental conditions.
If water does not drain properly, prolonged moisture exposure can contribute to roofing problems. Proper flashing, drainage, underlayment, and installation are also important components of roof performance.
Common Mistakes When Calculating Roof Pitch
Incorrect measurements can result in an incorrect pitch. Some common mistakes include:
- Confusing rise with run.
- Measuring along the roof surface instead of horizontally.
- Using different units for rise and run.
- Confusing pitch ratio with roof angle.
- Rounding measurements too early.
- Ignoring roof sections with different pitches.
- Assuming every roof uses the same roofing material requirements.
Tips for Measuring Roof Pitch
Accurate input measurements are essential for getting a useful calculator result. When measuring a roof, keep the following points in mind:
- Use a reliable measuring tape.
- Use a level when determining vertical and horizontal measurements.
- Keep rise and run in the same measurement unit.
- Measure more than once when possible.
- Record measurements carefully.
- Do not rely on visual estimation alone.
- For difficult or dangerous roof access, use a qualified professional.
Roof Pitch for Solar Panels
Roof pitch is also relevant when planning solar panel installations. The roof angle can influence panel orientation, mounting methods, installation access, and system design.
However, the ideal solar installation depends on the property's location, roof orientation, shading, system design, local conditions, and other factors. Roof pitch alone does not determine solar energy production.
Roof Pitch for Sheds, Garages, and Home Projects
Homeowners and DIY builders can use roof pitch calculations when designing sheds, garages, workshops, porches, additions, and other small structures. Knowing the pitch helps establish the roof geometry and can make it easier to communicate dimensions with builders or contractors.
Before constructing any permanent structure, check local permit requirements, structural requirements, and applicable building regulations.
Benefits of Using This Roof Pitch Calculator
- Quickly calculates roof pitch.
- Converts rise and run into a standard 12-unit pitch ratio.
- Calculates roof angle in degrees.
- Calculates slope percentage.
- Provides common pitch examples.
- Reduces manual calculation work.
- Works with several measurement units.
- Mobile-friendly and easy to use.
- Useful for homeowners and construction professionals.
- Free to use without complicated calculations.
Frequently Asked Questions About Roof Pitch
1. What is a Roof Pitch Calculator?
A Roof Pitch Calculator is an online tool that determines the pitch, angle, and slope of a roof using its rise and run measurements. It converts the measurements into a standard pitch format such as 4:12, 6:12, or 8:12.
2. How is roof pitch calculated?
Roof pitch is calculated by dividing the vertical rise by the horizontal run. The result can then be expressed using a standard 12-unit run.
Pitch = (Rise ÷ Run) × 12
3. What does a 6:12 roof pitch mean?
A 6:12 roof pitch means the roof rises 6 units vertically for every 12 units of horizontal run. Its approximate roof angle is 26.57 degrees and its slope is 50%.
4. What is the angle of a 4:12 roof?
A 4:12 roof pitch has an approximate angle of 18.43 degrees. Its slope percentage is approximately 33.33%.
5. What is the angle of a 6:12 roof?
A 6:12 roof has an angle of approximately 26.57 degrees. This means the roof rises 6 units for every 12 units of horizontal run.
6. What is the angle of a 8:12 roof?
An 8:12 roof pitch has an approximate angle of 33.69 degrees and a slope of about 66.67%.
7. Is roof pitch the same as roof angle?
No. Roof pitch is commonly written as a ratio such as 6:12, while roof angle is expressed in degrees. They both describe roof steepness but use different forms of measurement.
8. What is a 12:12 roof pitch?
A 12:12 roof pitch means the roof rises 12 units for every 12 units of horizontal run. This corresponds to a 45-degree roof angle and a 100% slope.
9. Can I use feet instead of inches?
Yes. The calculator accepts inches, feet, centimeters, and meters. The rise and run should always be entered using the same unit. Because the pitch is a ratio, using the same unit for both measurements gives the same pitch.
10. Why is roof pitch important for construction?
Roof pitch can affect drainage, snow accumulation, roofing material selection, roof geometry, attic space, installation methods, and overall building design. Actual construction decisions should also consider structural requirements, manufacturer specifications, and local regulations.
11. Can this calculator be used for roof replacement?
Yes. It can help you understand the pitch of an existing roof when you have reliable rise and run measurements. For material selection and installation, the calculated pitch should be verified against roofing product requirements and professional recommendations.
12. Can I use this calculator for a shed or garage roof?
Yes. The same rise-and-run relationship applies to many roof structures, including sheds, garages, porches, and other buildings. Local construction and permit requirements should be checked before building.
Conclusion
A Roof Pitch Calculator makes it easy to determine the relationship between roof rise and run. By entering two simple measurements, you can calculate the standard roof pitch ratio, roof angle in degrees, and slope percentage within seconds.
Understanding roof pitch is useful for homeowners, builders, roofing contractors, architects, DIY enthusiasts, and anyone planning a roofing or construction project. Pitch can influence drainage, snow performance, roofing materials, roof design, installation requirements, and the overall shape of a building.
Whether you are checking a 4:12 roof, comparing a 6:12 and 8:12 design, planning a shed roof, preparing for roof replacement, or simply learning how roof slope works, this calculator provides a quick way to convert rise and run into useful roofing measurements.
For actual construction work, always verify measurements and follow the applicable building requirements, roofing manufacturer instructions, and professional safety practices. Use the calculator as a planning and calculation aid rather than a substitute for professional structural advice.
